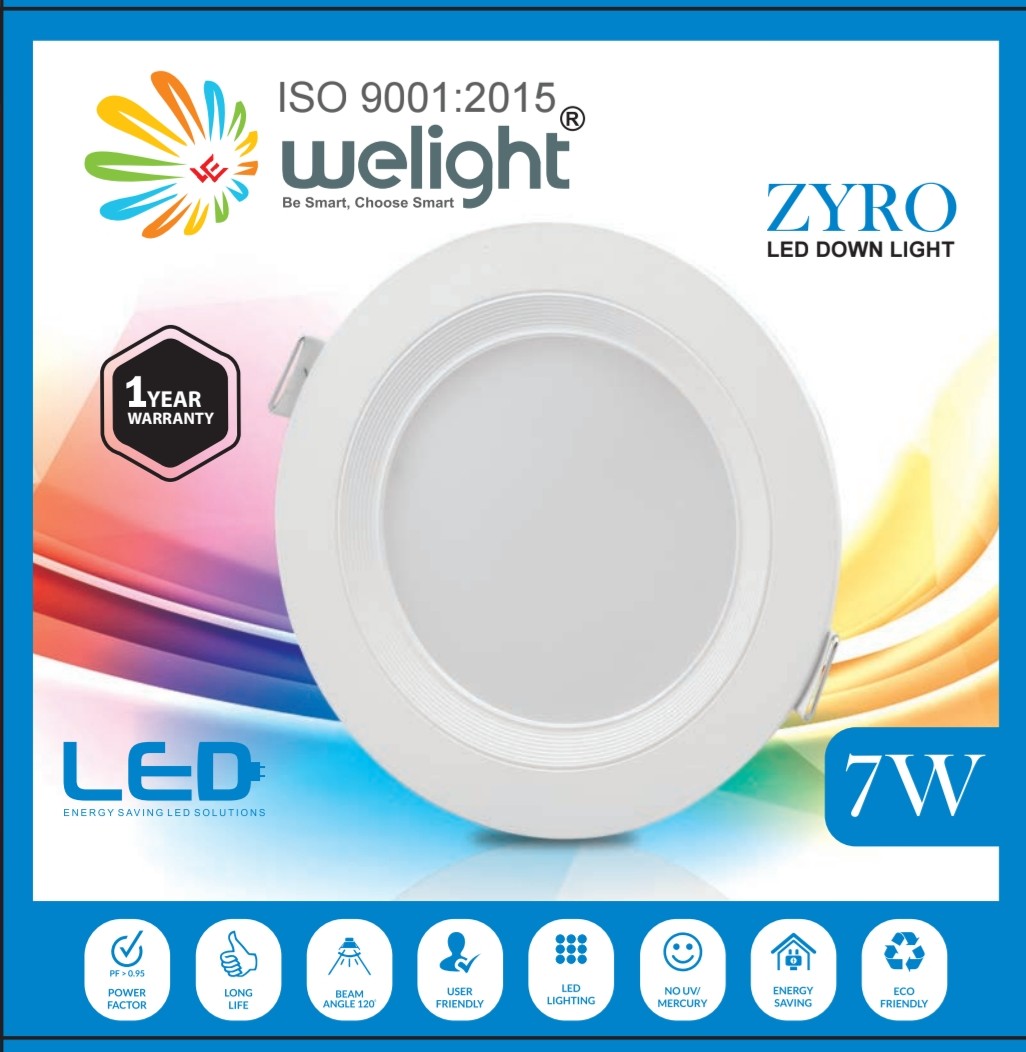

7W PC Junction

7W PC Junction is a compact and energy-efficient polycarbonate (PC) based LED downlight, typically used for recessed ceiling lighting in residential, commercial, and institutional spaces. Designed for a sleek, flush-mounted finish, it offers uniform light distribution with minimal glare and a long service life.

Advantages

- Energy Efficiency: Consumes 80% less energy compared to CFL or incandescent.

- Low Heat Emission: Polycarbonate construction minimizes heat conduction.

- Uniform Light Spread: Diffused lens and wide beam reduce shadowing.

- Durability: PC housing resists impact and discoloration.

- Maintenance-Free: No frequent lamp replacements.

- Eco-Friendly: No mercury or UV radiation.

- Easy Installation: Quick-fit spring clips enable fast ceiling mounting.

- Stable Light Output: Built-in driver maintains consistent brightness even with voltage fluctuations.

Key Features

- Wattage 7 Watts

- Material Flame-retardant Polycarbonate (PC) body

- Light Output ~700 lumens (approx.), high efficiency

- Color Temperature Options 3000K (Warm White), 4000K (Neutral White), 6000K (Cool White)

- Beam Angle 120° wide beam for uniform illumination

- Input Voltage AC 100–300V, 50/60 Hz

- CRI (Color Rendering Index) >80 for better color accuracy

- Driver Type Built-in constant current driver with protection

- Cut-out Size ~75–85mm (may vary by model)

- Installation Spring clip-based, tool-free recessed mounting

- Operating Temperature -10°C to 50°C

- Life Span 25,000 to 50,000 hours (typical)

Technical Write-Up

The 7W PC Junction LED downlight utilizes surface-mounted diode (SMD) technology to deliver high-lumen output with lower energy consumption. The integrated thermally conductive polycarbonate body ensures lightweight construction and moderate heat dissipation.

It includes an internal LED driver with surge protection and over-voltage safeguards, ideal for Indian grid conditions. The diffused optical lens ensures low-glare lighting, making it suitable for extended visual tasks.

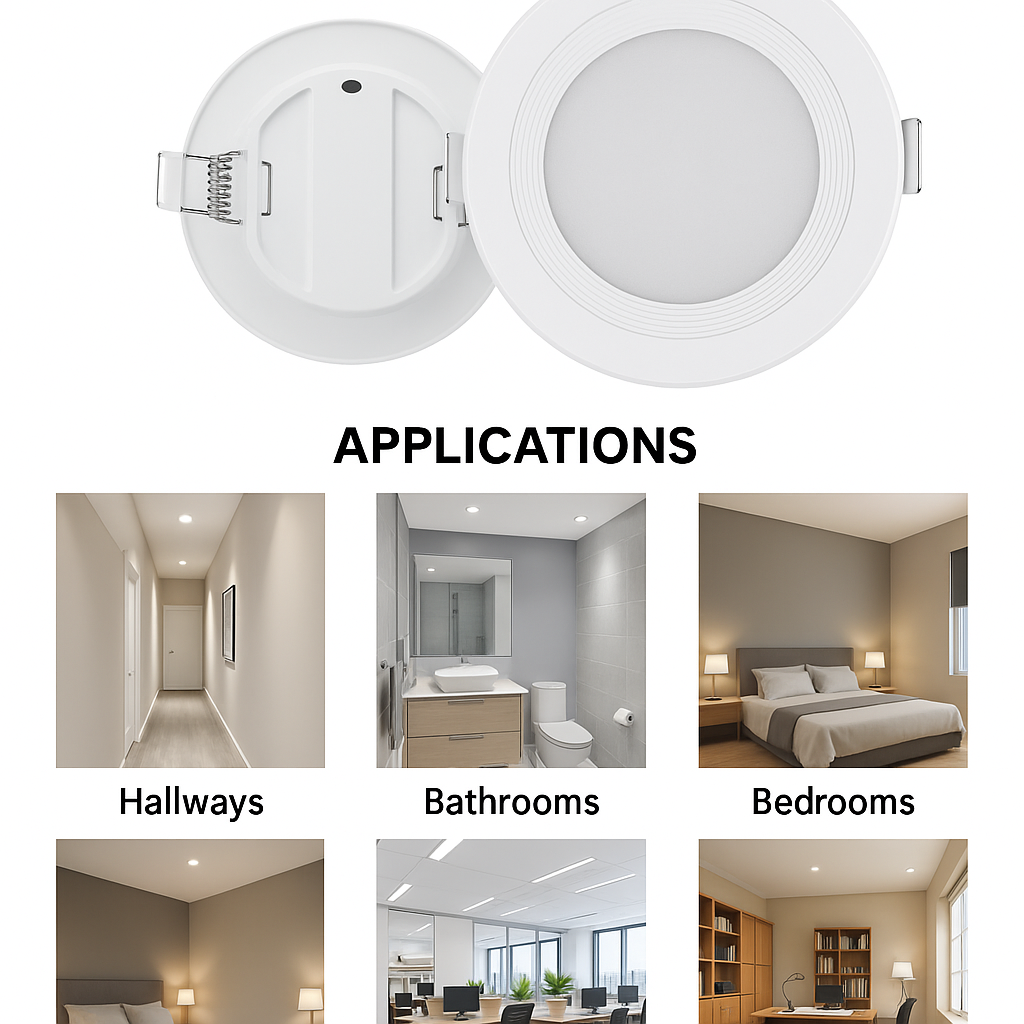

Common applications include:

Hallways

Bathrooms

Bedrooms

Retail counters

Offices and cabins

Its non-corrosive build, compact form, and tool-free mounting clips make it ideal for retrofitting or new installations.
