45W Flame Street Light

45W lens-based LED street light, sized at 272x95x65mm as shown in the attached image, features a compact die-cast aluminum housing with integrated optical lenses for efficient light distribution. Typical models offer high lumen output around 4500-5850 lm, IP66 weatherproofing, and surge protection up to 10kV, making them durable for outdoor use.

Key Features

* High-efficiency LED modules with lens optics for uniform asymmetrical beam (e.g., 85°x135° or Type II distribution)

* Power factor >0.95,

* THD <10%,

* CRI >70 for quality illumination.

* Isolated constant current driver, often potted for IP66 protection.

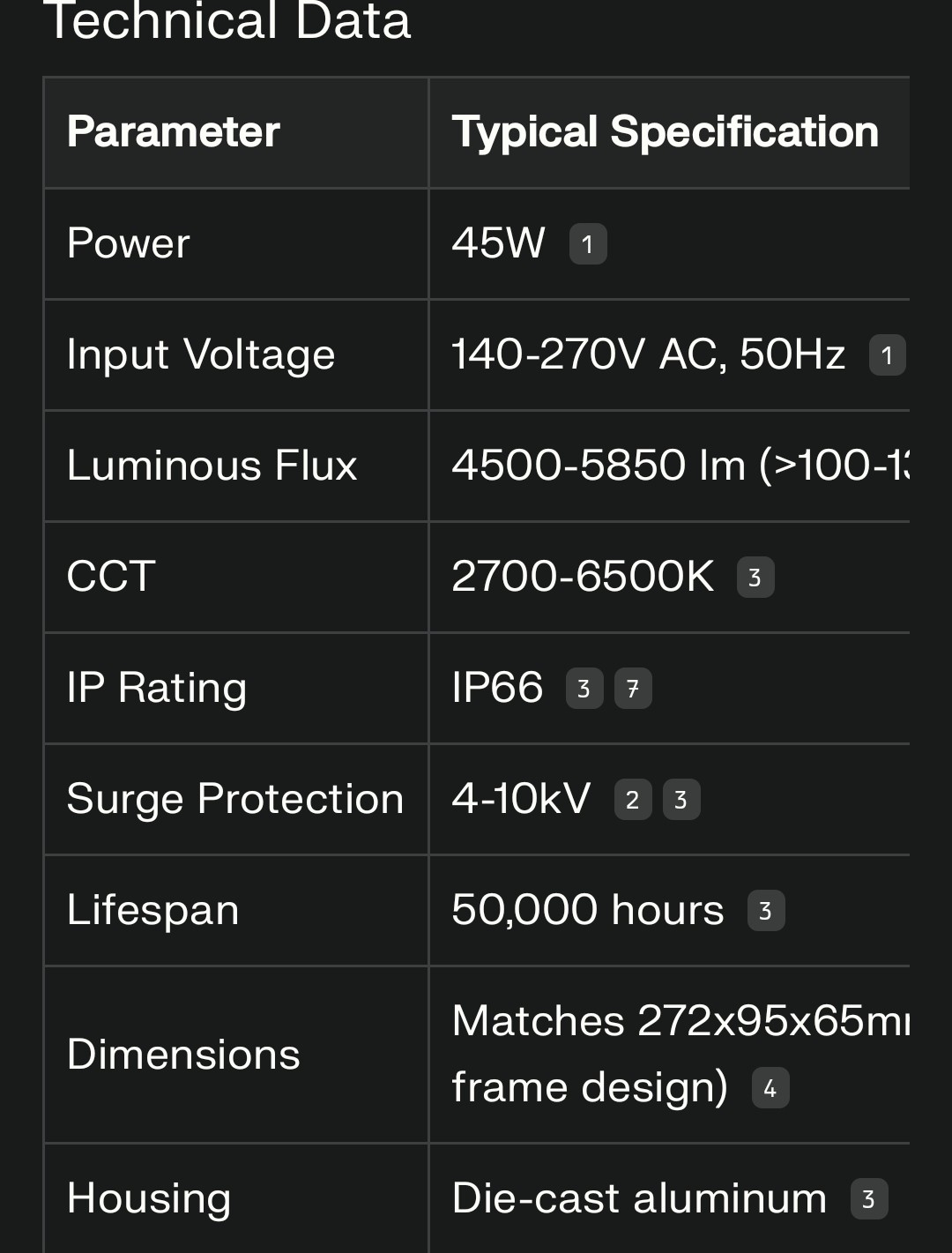

Technical Data

Applications

* These lights suit access roads, pathways, residential streets, gardens, and urban areas requiring focused roadway illumination. The lens design ensures batwing light patterns for wide coverage without dark spots.
